Name: High Precision Automatic Various PET Bottled Non-carbonated Beverage Production Line Water Filling Machine
Brand: Zhangjiagang Hengyu Beverage Machinery Co., Ltd.
Availability: InStock

Home Products Water filling machine

High Precision Automatic Various PET Bottled Non-carbonated Beverage Production Line Water Filling Machine

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	HENGYU
Certification:	CE Certificate

Contact Now

Detailed Product Description

Application:	Water	Packaging Type:	Bottles
Packaging Material:	Plastic	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	380V, 220V
Dimension(lwh):	3800mm2800mm2900mm	Warranty:	2 Years
Key Selling Points:	Easy To Operate, High-accuracy, Long Service Life, Flexible Manufacturing, High Productivity, Multifunctional	Filling Material:	Pure Water, Water, Oil, Alcohol, Juice, Spirit, Tea, Liquor
Filling Accuracy:	0.2%	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Core Components:	Motor, PLC, Pump, Gear, Bearing, Gearbox, Engine
After-sales Service Provided:	Free Spare Parts, Field Maintenance And Repair Service, Field Installation, Commissioning And Training, Video Technical Support, Online Support	Weight (KG):	5600
Filling Volume:	500ML, 200Ml, 100ML, 300ML, 400ML, 1L, 2000ml, 1000ML, 200-1500ml;2000ml To Be Confirmed	Lubrication System:	Independent
Material:	SUS304/316	Advantage:	Easy Operation High Efficiency
Control:	Siemens PLC+ Touch Screen	Pump:	Washing Pump+filling Pump
Filling Speed:	12000-15000BPH	Spare Parts:	Two Years
After Warranty Service:	7/24 Hours

\uD83D\uDC46Click Above Jump to GET SOLUTION!\uD83D\uDC46

2,000+ Success Pros

2,000+ top filling production lines during past 18 years.

Original Manufacture

100% guaranteed satisfaction and No Overpay Again!

Money & Cost Saving

1- 1 Vip Custom Solution to support your business.

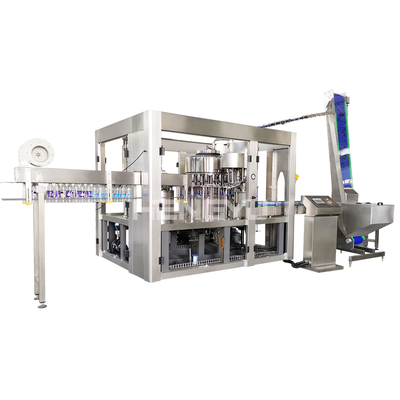

Product Description

CGF32-32-10

Product Capacity:15000BPH@500ml

- Product Features -

1. The whole machine adopts the design of stuck bottleneck suspension operation mode so that the bottle is stable and reliable under high-speed operation, and at the same time, the number of changed parts is greatly reduced, making it more convenient and fast when changing the bottle type.

2. A new generation of stainless steel flip bottle clamp is adopted so that the clamp does not contact the upper part of the thread of the bottle mouth, and a spray head is provided so that the inner wall of the bottle can be rinsed fully without dead corners.

3. Adopting advanced gravity filling principle, the filling is fast, stable, and accurate.

4. Adopt magnetic torque type capping head to realize capping and capping. The capping torque is infinitely adjustable, the sealing is tight and reliable, and the cap is not hurt.

5. The whole machine adopts man-machine interface touch screen buttons, PLC computer control, and is equipped with a cover missing and overload protection alarm device, which can find and eliminate faults in time and have a high degree of production automation.

6. The parts in contact with water are made of high-quality stainless steel, and the main electrical components are all products of well-known international manufacturers.

-Technical Parameters-

Model(CGF)	14/12/5	18/18/6	24/24/8	32/32/10	40/40/12	50/50/12	60/60/15
Rinsing heads	14	18	24	32	40	50	60
Filling heads	12	18	24	32	40	50	60
Capping heads	5	6	8	10	12	12	15
Capacity(BPH)	5000	8000	12000	15000	18000	24000	28000
Power(kw)	2.2	3.5	4.5	6	7.5	9.5	11.2
Dimension (mm)	240016502500	260019202550	310021002800	380028002900	460028002900	545033002900	650045002900
Weight(kg)	2500	3500	4500	5600	8500	9800	12800

-Detailed Images-

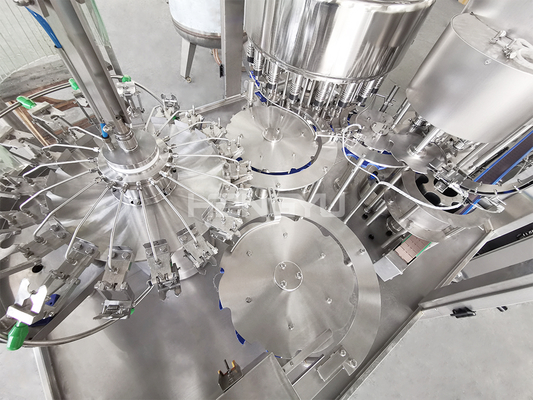

Washing Part

1)Into bottle way is air conveyor direct connection with Bottle dial .

2)All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean .

3)304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing

4)304/316 stainless steel washing pump make the machine more durable .

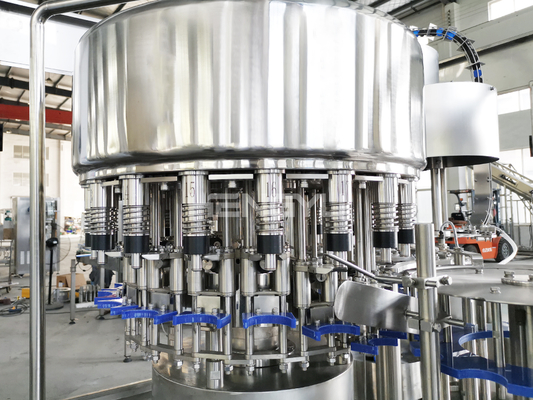

Filling Part

1)304/316 Stainless steel high precision filling nozzle

2) Filling volume adjustable in fine rank, same liquid level after filling

3)All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean

4) 304/316 stainless steel filling pump

5)Efficient spray nozzle rinse thoroughly and save water for flushing

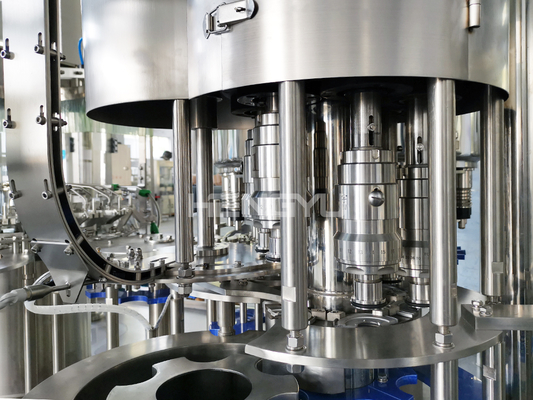

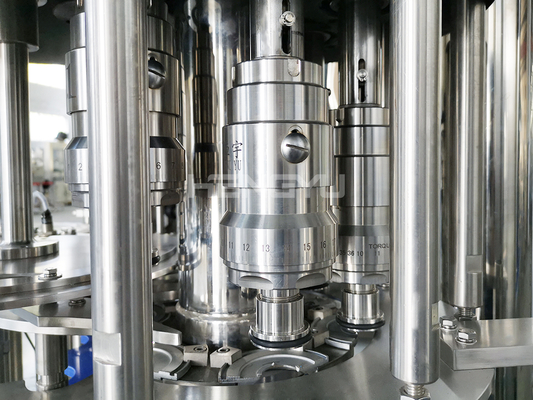

Capping Part

1) Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping

2)All 304/316 stainless steel construction

3)No bottle no capping

4)Automatic stop when lack of bottle

5)Capping effect is stable and reliable ,Defective rate ≤0.2% .

Turnkey Solution

Professional Creation of the Future: Your Turnkey Project Partner for the Filling Machine Factory We focus on providing highly integrated, intelligent and all-inclusive turnkey engineering solutions for filling machine factories to global customers. As experienced industry experts, we have a profound understanding of the complex process and strict standards involved from raw materials to finished product filling. We not only provide core filling equipment, but also integrate planning, design, manufacturing, installation, commissioning, verification

and training, ensuring a seamless transition from blueprint to efficient production in your factory.

Let's join hands and start from "zero" to build a perfect bottling plant!

Auxiliary

Water Treatment System

1 Raw water tank + Raw water pump
2 Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter
3 Reverse Osmosis (one level)
4 UV sterilizer
5 Finished water tank + Pure water pump

Bottle Blowing Machine

The pet stretch blow molding machine is the most stable two-step automatic stretch blow moulding machine. It has various cavities and the maximum capacity of the products is 20L. It can blow bottles in shapes: Carbonated, mineral, pesticide, cosmetics,wide-mouth, hot filling, and other packing containers etc. Which is made of plastic of crystalline type, such as PET and PP etc.

Bottle Dryer

Using high pressure air ventilation, so that high-speed air flow ejected from a slit, the remaining drops of water bottles as much as possible the body blow it away. Inclination of the slit so that the entire side of the bottle can be high-speed air-blown. The bottle dryer consists of the high pressure air fan, pressure tank, inflatable tube, rack, control devices, and other components.

Laser Printer

Laser marking machines handle nearly every industrial marking and DPM (Direct Part Marking) task. Metals, plastics, ceramics,glass etc. are processed efficiently and contact-free. All desired contents are applied repeatedly accurate and reliably: 2D, DMC and alphanumeric codes, simple serial numbers, complex logos, graphics, structures. Depending on the material and application task, the process is laser marking, engraving or deep engraving.

Sleeve Labeling Machine

This machine adopts international advanced technology; cover the circle label on the pet bottle. And then hot shrinking to fix on
the position which bottle body designated. This machine's structure is compact, and suitable for the production line of different
direction and different height.

Shrink Film Packing Machine

The machine is suitable for wrapping of such products as pop top, mineral water , bottles. beer, drinks etc. It consists of seven actuating motor, through cooperation with 7 actuating motor to form the product packed with plastic film and several bottles as a group out from the hot shrinking packing machine.

Vision Hengyu

Service

1. Installation & debugging
After equipments reached the workshop of customer, place the equipments according to plane layout we offered. We will arrange seasoned technician for equipments installation, debugging and testing production at the same time to make the equipments reach the rated producing capacity of the line.

2. Training
Our company offers technology training to customer. The content of training is structure and maintenance of equipments, control and operation of equipments. Training is in the workshop of customer. Seasoned technician will guide and establish training outline.After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.

3. Quality guarantee
We promise that our goods are all new and not used. They’re made of suitable material, adopts new design. The quality,specification and function all meet the demand of contract.

4. After sales
After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price. After quality guarantee, we offer technology support and after sales service. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems.

Packing and delivery

FAQ

Q1: Are you a trading company or a manufacturer?
A1: We are the direct manufacturer. This allows us to offer factory-direct pricing while maintaining excellent quality standards.Our experienced Engineering Team has over 25 years of expertise. We welcome you to arrange a factory tour!
Q2: How can I be assured of your machine's quality?
A2: For your confidence, we provide a video demonstration of your specific machine undergoing full operational testing prior to shipment. We also encourage you to send us your sample bottles for a trial run on our equipment.

Q3: What warranty and support do you provide with your machines?
A3: We stand behind the quality of our machines with a comprehensive 12-month warranty. Beyond this, we are committed to providing
lifelong technical support to ensure your long-term operational success.
Q4: What is the lead time after payment?
A4: The delivery timeframe depends on the specific machine model and configuration you have finalized. We will provide a confirmed schedule upon order confirmation.
Q5: How will the machine be installed upon arrival?
A5: To ensure seamless setup and operation, we will dispatch our qualified engineers to your factory. They will handle the complete installation and provide comprehensive training for your staff on machine operation.
Q6: What about spare parts availability?
A6: Following the finalization of your order, we will furnish you with a detailed spare parts list for your reference and future needs. Essential parts are readily available to minimize downtime.
