Name: Hengyu 2025 10 Litres Pure Water Filling 3 in 1/15 Gallon Water Washing and Filling Machine/19 Liter Bottle Filling Equipment
Brand: Zhangjiagang Hengyu Beverage Machinery Co., Ltd.
Availability: InStock

Home Products 1-5 gallon filling machine

Hengyu 2025 10 Litres Pure Water Filling 3 in 1/15 Gallon Water Washing and Filling Machine/19 Liter Bottle Filling Equipment

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	HENGYU

Contact Now

Detailed Product Description

Application:	Beverage, Food	Packaging Type:	Bottles, Barrel
Packaging Material:	Plastic	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	380V
Dimension(lwh):	OEM	Warranty:	2 Years
Key Selling Points:	Easy To Operate	Filling Material:	Water
Filling Accuracy:	99%	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Core Components:	Motor, Pressure Vessel, Pump, PLC, Gear, Bearing, Gearbox, Engine
Weight (KG):	1500	Name:	Automatic 5 Gallon Water Filling Machine
Application:	Drink Water / Mineral Water / Spring Water	Function:	Washing Filling Capping
Bottle Type:	PET Plastic Bottle	Material:	Stainless Steel 304/316
Capacity:	100-1800 BPH	Control:	Automatic
Processing Types:	Normal Pressure Filling	Electrical Equipment:	International Brands
Code:	WPL001

\uD83D\uDC46Click Above Jump to GET SOLUTION!\uD83D\uDC46

2,000+ Success Pros

2,000+ top filling production lines during past 18 years.

Original Manufacture

100% guaranteed satisfaction and No Overpay Again!

Money & Cost Saving

1- 1 Vip Custom Solution to support your business.

All-in-one Top Filling Solution

\uD83D\uDC4DPET Bottle Water Solution

Rotary Type 3-in-1 Washing Filling Capping

\uD83D\uDC4DGlass Bottle Solution

Rotary Type 3-in-1 Washing Filling Capping

Pop Can Solution

Rotary Type 2-in-1 Filling Capping

\uD83D\uDC4D3-5 Gallon Solution

Linear Type 3-in-1 Washing Filling Capping

3-10 Liter Solution

Linear Type 3-in-1 Washing Filling Capping

Daily Products Solution

Linear Type Piston Filling

Products Description

Main Feature

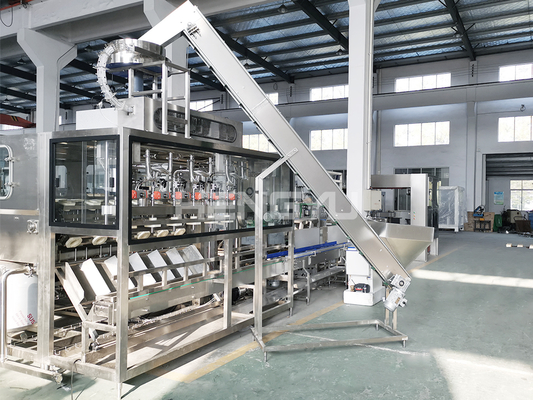

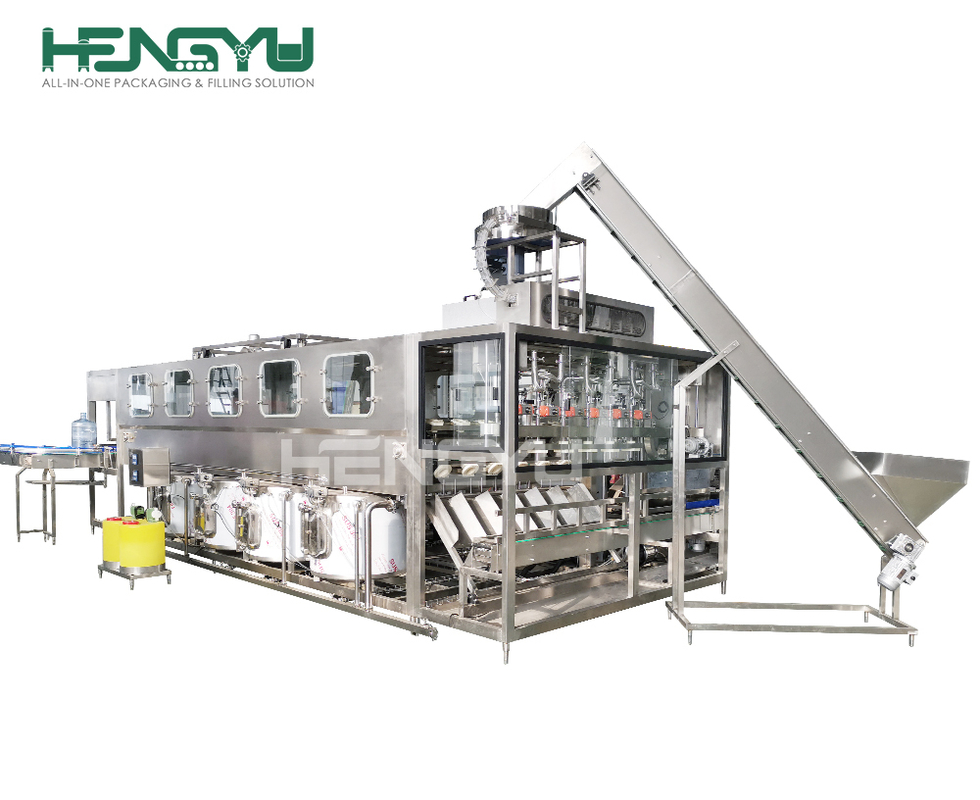

(1) QGF series automatic production line is specialized for production of 3-5 Gallon barrel.

(2) The machine consists of washing, filling and sealing in one.

(3) The bottle washer adopts multi-channel washing liquid injection and disinfectant injection for the purpose of washing sterilization.The disinfectant is recyclable.

(4) The sealing machine can start sealing automatically and the bottle conveying port is equipped with a sanitation device to ensure the sanitation of cap.

(5) Washing, disinfection, filling, gland, counting and discharging is automatic.

(6) The major electrical apparatus are all products of well-known brands, such as SIEMENS, MITSUBISHI, Schneider and OMRON.

(7) This production line is an ideal choice for mineral water, distilled water and purified water with impact structure, small occupation of land and high automation.

Containers and Specifications
Project Name: Full Automatic Complete 60-1200BPH 3-5 Gallon Barrel Filling Production Line				Mineral Water Pure Water
Material	Shape	Filling Volume	Filling Type
PC / PET	Round / Square	3 - 5 Gallon	Gravity filling Normal temperature
Adjustable Specifications of Bottle Type	Size of Barrel : ф276×490mm
Adjustable Specifications of Bottle Type		Customers need to buy exchange component for the different bottles. If using square bottles, then bottle separating system will be added.
Container Label	Sticker Label / Shrink Wrap Label / Printer Label
User Ambient Conditions	Temperature: 10~40℃ Humidity: No dew
User Electrical Supply Specification	Voltage: 380V±5% 3 Phase Frequency: 50HZ±1%

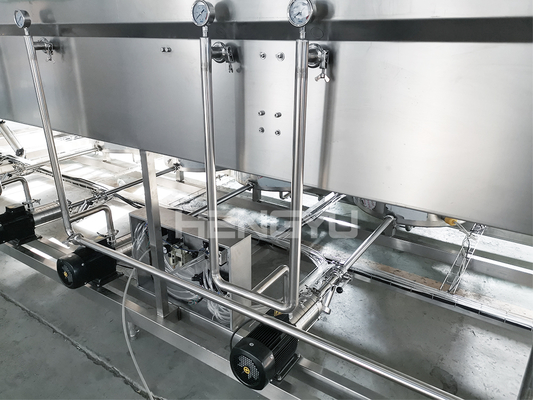

Washing Part

1.High pressure water with inside rinsing head to make sure fully cleaning with no dead angle.

2.Up to 14 rinsing stations which can meet various hygiene standards and rinsing process.

3.Independent cycle recovery system to prevent mixing of cleaning fluids.

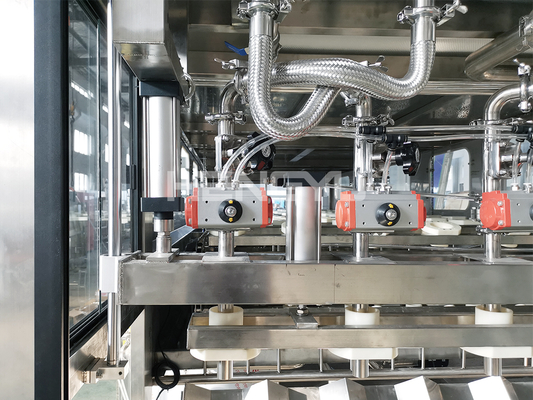

Filling Part

(1) Uploading and dropping barrels changed from 45 degree to translatory which is more stable.

(2) Nozzle can insert into 10-15cm of the barrel in order to rinse little impurities down. Rinsing pump is separately controlled by different magnetic valves. Pump only work when there is barrel on that. It can avoid the mixture of different cleaning fluid.

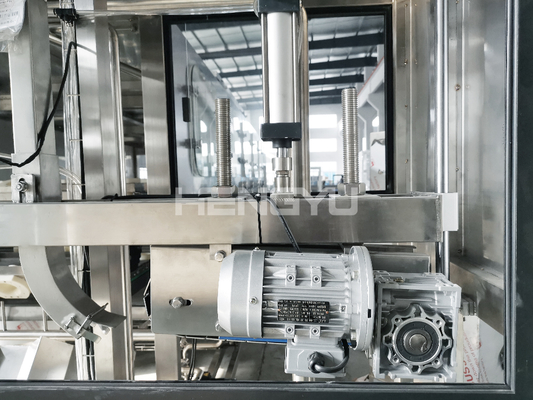

Capping Parts

(1) Liquid level difference is controlled in 1cm.

(2) Machine is equipped with Cap Sterilization system, which is 1.2m. The system make products more clean and safe by using sterilization and finished water.

(3) Customers can choose to equip ABB/SEW motor, GRUNDFOS water pump, FESTO pneumatic component.

Auxiliary

External brushing machine

Automatic barrel outer brushing machine specially work with 5 Gallon barreled water producing line. It is used for reducing the settling caused by the mineral water itself and some algae substances in the process of mineral water producing. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance.

Auto bagging machine

This machine adopts the flat beltsupporting the bottom of the barrel into theBy using the flow line speed to open the distance between the barrels,smooth delivery to the bucket idler to complete the bagging and cutting.Sealing without stopping,avoidfrequent start,reduce mechanical impact,reduce energy consumption,improve the performance of the equipment,reduce the failurerate.

Gantry stacker

This Stacker for gallon bottle is used to make the filled gallon bottle packed with film in order, which can avoid the gallon water to be polluted with dust, and it's convenient to make the transportation and sell.Relizing 5 gallon barrels of palletizing according to the requirements into 5 layer, layer can be adjusted, usually every layer 4* 4 = 16 barrels, but also customize according to customer's request.

Vision Hengyu

Service

1. Installation & debugging
After equipments reached the workshop of customer, place the equipments according to plane layout we offered. We will arrange seasoned technician for equipments installation, debugging and testing production at the same time to make the equipments reach the rated producing capacity of the line.

2. Training
Our company offers technology training to customer. The content of training is structure and maintenance of equipments, control and operation of equipments. Training is in the workshop of customer. Seasoned technician will guide and establish training outline.After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.

3. Quality guarantee
We promise that our goods are all new and not used. They’re made of suitable material, adopts new design. The quality,specification and function all meet the demand of contract.

4. After sales
After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price. After quality guarantee, we offer technology support and after sales service. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems.

Packing and delivery

FAQ

1.HOW TO FIND HENGYU MACHINERY?
1/Search Alibaba,Google,Youtube,Facebook and find suppliers and manufacturer,not traders
2/Visit exhibition in different countries
3/Send Hengyu Machinery an request and tell your basic inquiry
4/Hengyu Machinery sales manager will reply you in short time and add instant chatting tool

2.YOU ARE WELCOME TO OUR FACTORY AT ANY TIME.
1/If we can full-fill your request and you interested in our products,you may pay a visit to Hengyu Machinery site
2/The meaning of visiting supplier,because seeing is believing,Hengyu Machinery with our own manufacture and developed&research team,we can send you engineers and make sure your after sales service.

3.HOW TO GUARANTEE YOUR FUNDS TO BE SAFE AND DELIVERY TO BE ON TIME?
1/Through Alibaba letter guarantee service,it will ensure the on time delivery and the quality of the equipment you want to buy.
2/By letter of credit,you can lock the delivery time easily.
3/After the factory visit,You can ensure the facticity of our bank account.

4.SEE HENGYU MACHINERY HOW TO ENSURE THE QUALITY!
1/In order to ensure the accuracy of each part,we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
2/Each component before assembly needs strictly control by inspecting personnel.
3/Each assembly is in charged by a master who has working experience for more than 5 years
4/After all the equipment are completed,we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory

5.THE AFTER-SALE SERVICE OF HENGYU MACHINERY!
1/After finish the production,we will debug the production line,take photos,videos and send them to customers via mail or instant tools
2/After the commissioning,we will package the equipment by standard export package for shipment.
3/According to the customer's request,we can arrange our engineers to customers' factory to do the installation and training.
4/Engineers,sales managers and after-sales service manager will form a after-sales team,online and off line,to follow the customers' project.
