Name: Beverage Bottling Plant Production Line Factory OEM Plastic Bottle Milk Juice Filling Capping Machine Equipment for Sale
Brand: Zhangjiagang Hengyu Beverage Machinery Co., Ltd.
Availability: InStock

Home Products Juice hot filling machine

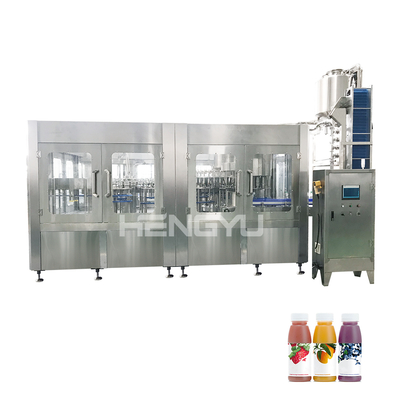

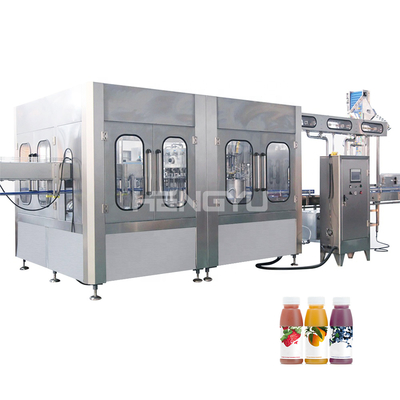

Beverage Bottling Plant Production Line Factory OEM Plastic Bottle Milk Juice Filling Capping Machine Equipment for Sale

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	HENGYU MACHINE

Contact Now

Detailed Product Description

Application:	Food, Beverage, Chemical, Machinery & Hardware, Juice	Packaging Type:	Bottles
Packaging Material:	Plastic	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	380V/3 Phase
Dimension(lwh):	By Model	Warranty:	2 Years
Filling Material:	Beer, Milk, Juice	Filling Accuracy:	0.2%
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Core Components:	Motor, PLC, Gear, Bearing, Engine	After-sales Service Provided:	Field Installation, Commissioning And Training, No After-sales Service, Field Maintenance And Repair Service
Weight (KG):	3000

\uD83D\uDC46Click Above Jump to GET SOLUTION!\uD83D\uDC46

2,000+ Success Pros

2,000+ top filling production lines during past 18 years.

Original Manufacture

100% guaranteed satisfaction and No Overpay Again!

Money & Cost Saving

1- 1 Vip Custom Solution to support your business.

Product Description

1) Small juice filling machine is designed by advanced technology that scientific reasonable.It is nice appearance,complete functions,easy to operate and maintenance,high automatic.It is the best choice

for heating filling products manufacturers.
2) This machine used advanced MMI automatic control system and variable-frequency speed control system(VWF).
3) Designed by the structure of suspension type getting stuck the bottleneck and conveying,filling valve lift technology to meet the requirement of heat filling within 95℃.
4) There is constant temperature circulation system,self temperature control and liquid reflux.
5) The machine parts of direct control with liquid like inlet valve used stainless steel SUS316 material.The main motor,reducer,bearings,sealing elements,electrical apparatus elements and pneumatic elements are all imported from well known manufacturers of the world.

Technical parameters

Model (RCGF)	14/12/5	18/18/6	24/24/6	32/32/8	40/40/10	50/50/12	60/60/15
Rinsing heads	14	18	24	32	40	50	60
Filling heads	12	18	24	32	40	50	60
Capping heads	5	6	6	8	10	12	15
Capacity (BPH)	3000	5000	8000	12000	15000	18000	25000
Power(kw)	2.2	3.5	4.5	6	7.5	9.5	11.2
Dimension (mm)	23001600 2500	26001920 2550	31002100 2800	38503000 2850	48503800 2750	57503550 2750	65005500 2750
Weight(kg)	2600	3650	4800	6800	8500	10000	12000

Detail Images

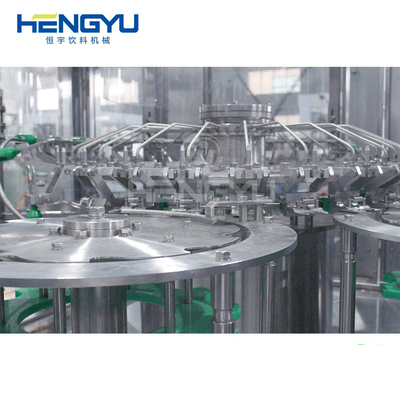

Washing heads

<1> All 304/316stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
<2> 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
<3> 304/316 stainless steel washing pump.

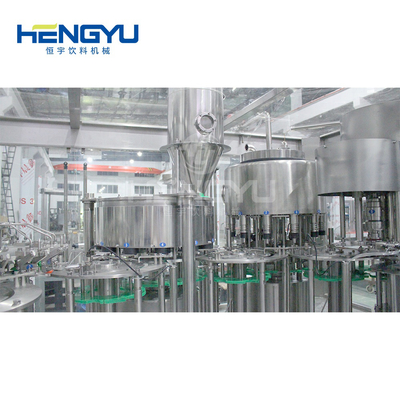

Filling heads

<1> 304/316 Stainless steel high precision filling nozzle.
<2> Filling volume adjustable in fine rank, same liquid level after filling.
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean.
<4> 304/316 stainless steel filling pump.

Capping heads

<1> Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping.
<2> All 304/316 stainless steel construction.
<3> No bottle no capping.
<4> Automatic stop when lack of bottle.

Auxiliary Equipment

Water Treatment System

1) Stainless steel high pressure film shell
2) All kinds of capacity indicator, pressure indicator, electricity magnetic valve,

balance device and pipe valve system
3) Online type pressure auto self-protection device
4) Online type electricity indicator (with stable compensation)
5) System safe protecting and alarm system
6) System frame

Bottle Blowing Part

1) Widely used to produce the carbonated bottle,mineral water bottle,pesticide bottle,oil bottle and cosmetics etc.
2) Suitable for producing PET plastic containers and bottles in all shapes.
3) With famous electrical components and have various capacities.

Shower Cooling Machine

1) Mainly for cooling and sterilization
2) The main parts of the machine are made of stainless steel, the top is designed to be openable for easy maintenance and observation
3) Nozzles are manufactured using U.S. technology and spray water evenly
4) Conveyor belt adopts Rexnor

technology, flat surface with small wear
5) Smooth and reliable operation with low energy consumption

Labeling Part

1) Heat shrink sleeve labeling machine
2) OPP Hot melt labeling machine
3) PVC label stick labeling machine
The running of complete machine is stable and at high speed with the use of imported servo control system.Using of special bottle-distributing mechanism to avoid the materials being scrached and with which the machine can be adjusted and located quickly to label bottles with any diameter without replacing accessories.

Packaging Part

1) PE film shrink wrapping machine
2) Half-tray shrink wrapping machine
3) Carton box packaging machine
It adopts the photoelectric sensor to detect online, gather signals which are controlled by PLC, and adopts piston as executable element, to realize product conveying, combination, film wrapping, cutting, heat& shrink, cool and finally get the finished product.

Vision Hengyu

Our Service

1. Installation & debugging

After equipments reached the workshop of customer, place the equipments according to plane layout

we offered. We will arrange seasoned technician for equipments installation, debugging and testing production at the same time to make the equipments reach the rated producing capacity of the line.

2. Training
Our company offers technology training to customer. The content of training is structure and maintenance of equipments, control and operation of equipments. Training is in the workshop of customer. Seasoned technician will guide and establish training outline.After training, the technician

of buyer could master the operation and maintenance, could adjust the process and treat different failures.

3. Quality guarantee
We promise that our goods are all new and not used. They’re made of suitable material, adopts new design. The quality,specification and function all meet the demand of contract.

4. After sales

After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts

at the lowest price. After quality guarantee, we offer technology support and after sales service. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems.

Packing & Delivery

FAQ

Q1: Are you a trading company or a manufacturer?
A1: We are the direct manufacturer. This allows us to offer factory-direct pricing while maintaining excellent quality standards.Our experienced Engineering Team has over 25 years of expertise. We

welcome you to arrange a factory tour!
Q2: How can I be assured of your machine's quality?
A2: For your confidence, we provide a video demonstration of your specific machine undergoing full operational testing prior to shipment. We also encourage you to send us your sample bottles for a

trial run on our equipment.

Q3: What warranty and support do you provide with your machines?
A3: We stand behind the quality of our machines with a comprehensive 12-month warranty. Beyond this,

we are committed to providing lifelong technical support to ensure your long-term operational success.
Q4: What is the lead time after payment?
A4: The delivery time frame depends on the specific machine model and configuration you have finalized. We will provide a confirmed schedule upon order confirmation.
Q5: How will the machine be installed upon arrival?
A5: To ensure seamless setup and operation, we will dispatch our qualified engineers to your factory.

They will handle the complete installation and provide comprehensive training for your staff on machine operation.

Q6: What about spare parts availability?
A6: Following the finalization of your order, we will furnish you with a detailed spare parts list for your reference and future needs. Essential parts are readily available to minimize downtime.
