Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
---|---|---|---|
Core Components: | PLC, Engine, Gearbox | Application: | Food, Beverage, Chemical, Machinery & Hardware |
Driven Type: | Electric | Automatic Grade: | Automatic |
Voltage: | 380v | Packaging Type: | Bottles |
Packaging Material: | Plastic, Glass | Dimension(l*w*h): | 2600x1920x2550 |
Warranty: | 1 Year | Weight (KG): | 3500 |

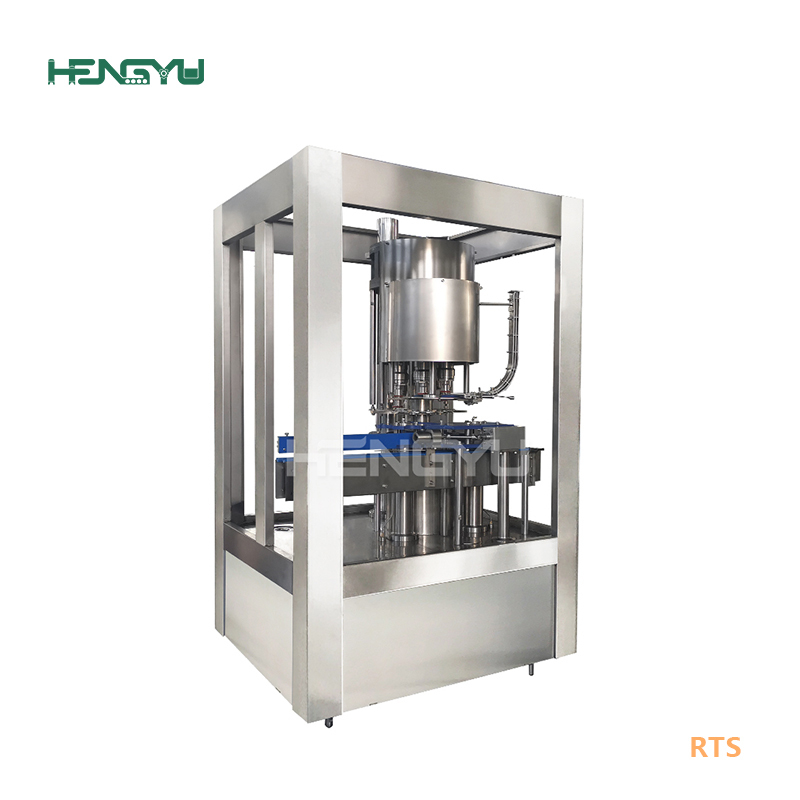

Product Name: | Screw Capping Machine | Name: | Bottle Cap Closer |
Capping Type: | Plastic Cover | Keywords: | Autoamtic Capping Machine |
Material: | Stainless Steel 304 / SUS316L | Advantage: | High Efficiency |
Application Fields: | Beverage Bottle Jars | Applicable Caps: | Plastic Glass Bottle Capper |
Control: | PLC+ Touch Screen | Used For: | Drink Bottle Beverage Bottle |
Model(CGF) | 14/12/5 | 18/18/6 | 24/24/8 | 32/32/10 | 40/40/12 | 50/50/12 | 60/60/15 |
Rinsing heads | 14 | 18 | 24 | 32 | 40 | 50 | 60 |
Filling heads | 12 | 18 | 24 | 32 | 40 | 50 | 60 |
Capping heads | 5 | 6 | 8 | 10 | 12 | 12 | 15 |
Capacity(BPH) | 4000 | 7000 | 11000 | 13000 | 18000 | 24000 | 28000 |
Power(kw) | 2.2 | 3.5 | 4.5 | 6 | 7.5 | 9.5 | 11.2 |
Dimension(mm) | 2400*1650*2500 | 2600*1920*2550 | 3100*2100*2800 | 3800*2800*2900 | 4600*2800*2900 | 5450*3300*2900 | 6500*4500*2900 |
Weight(kg) | 2500 | 3500 | 4500 | 5600 | 8500 | 9800 | 12800 |
