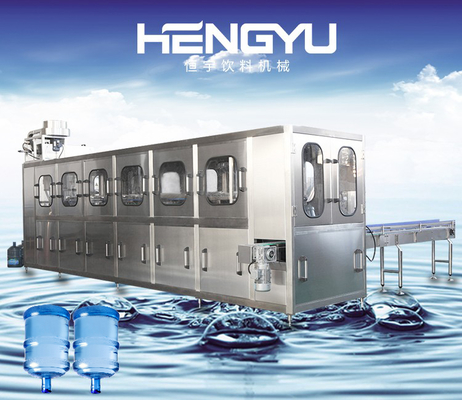

High Efficiency 5 Gallon Drinking Water Filling Machine Bottle Filling Equipment Machines Production Industrial Machinery

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	HENGYU MACHINE

Contact Now

Detailed Product Description

Application:	Beverage, Food	Packaging Type:	Bottles, Barrel
Packaging Material:	Plastic	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	380V/3 Phase
Dimension(lwh):	24001650 2500	Warranty:	1 Year
Filling Material:	Water	Filling Accuracy:	≤0.2%
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Core Components:	PLC, Engine	Weight (KG):	500
Name:	5 Litres Water Filling Machine	Application:	Drink Water/Mineral Water/Spring Water
Function:	Washing +Filling+ Capping	Bottle Type:	PET Plastic Bottle
Material:	Stainless Steel 304/316	Capacity:	300BPH
Control:	Automatic	Processing Types:	Normal Pressure Filling
Electrical Equipment:	International Brands	Marketing Type:	Hot Product 2019

Product Description

Hengyu 5l 5 litres water filling machine whole production line

Water bottling machine combined 3 in 1 mineral water filling machine 5 gallons bottling line

Model : Heng Yu Machine QGF-300

Main Features

QGF type barreled water producing line is the core equipment in the 5 Gallon barreled drinking water producing line. It is the ideal equipment for mineral water, distilled water and purified water producing process. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance. The main electrical parts adopt products with the brand of SIEMENS and OMRON. Pneumatic parts adopt products with the brand of AIRTAC. Both the inner and outer shower nozzle for washing barrel adopt the special technology equipment from American sprayer company. The machine works reliably and efficiently based on the compact structure and high automatic technology. It is the fully automatic barreled water producing equipment combined with machine, electronic and pneumatic components.

Containers and Specifications
Project Name: Full Automatic Complete 60-1200BPH 3-5 Gallon Barrel Filling Production Line				Mineral Water Pure Water
Material	Shape	Filling Volume	Filling Type

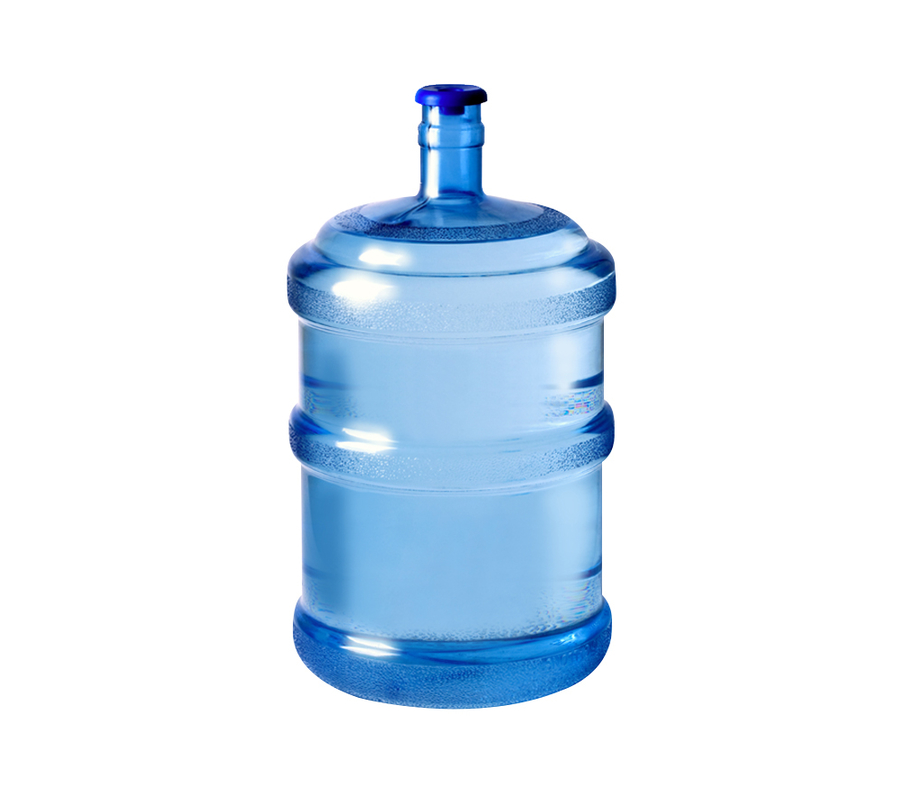

PC / PET	Round / Square	3 - 5 Gallon	Gravity filling Normal temperature
Adjustable Specifications of Bottle Type	Size of Barrel : ф276×490mm
Adjustable Specifications of Bottle Type		Customers need to buy additional change-over parts for the different bottles. If using square bottles, then bottle separating system will be added.
Container Label	Sticker Label / Shrink Wrap Label / Prinetr Label
User Ambient Conditions	Temperature: 10~40℃ Humidity: No dew
User Electrical Supply Specification	Voltage: 380V±5% 3 Phase Frequency: 50HZ±1%

3-5 Gallons Barreled Water Production Line Benefits

(1) QGF series automatic production line is specialized for production of 3-5 Gallon barrel.

(2) The machine consists of washing, filling and sealing in one.

(3) The bottle washer adopts multi-channel washing liquid injection and disinfectant injection for the purpose of washing sterilization.The disinfectant is recyclable.

(4) The sealing machine can start sealing automatically and the bottle conveying port is equipped with a sanitation device to ensure the sanitation of cap.

(5) Washing, disinfection, filling, gland, counting and discharging is automatic.

(6) The major electrical apparatus are all products of well-known brands, such as SIEMENS, MITSUBISHI, Schneider and OMRON.

(7) This production line is an ideal choice for mineral water, distilled water and purified water with impact structure, small occupation of land and high automation.

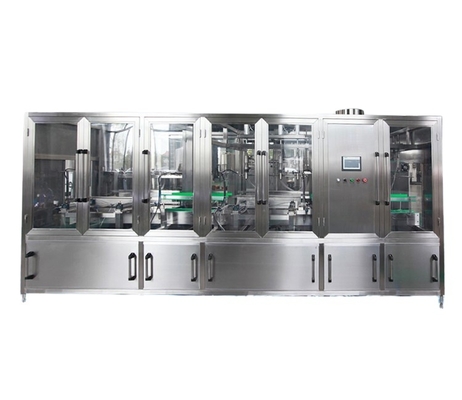

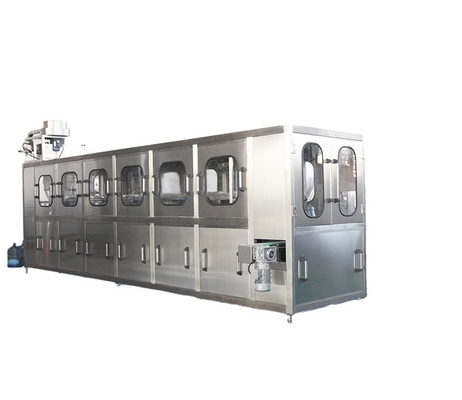

The Washing-Filling-Capping Machine

The Detail Photos

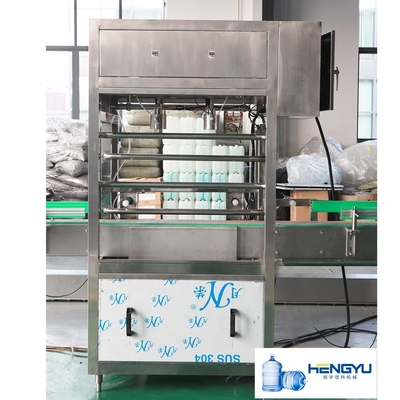

Automatic barrel outside brush machine

Automatic barrel inside brush machine

Pump and pressure measure instrument

The alkali water tank ,recycle water tank and the sterilization liquid tank

Automatic contractor

Auxiliary machines

Water Treatment System

1 Raw water tank + Raw water pump
2 Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter
3 Reverse Osmosis (one level)
4 UV sterilizer
5 Finished water tank + Pure water pump

Pretreatment System

This project is to design for the carbonated drinks preparation to meet the client’s technics, which includes hot water section,sugar melting section, syrup storage section, sterilizing section, carbon mixing section. This design is popular in the modern beverage field worldwide, with the advantages of high efficiency, energy saving, continuous working, etc.

CO2 Mixer

Mixer is designed and made for improving the proportion of water, syrup and carbonated dioxide. It adopts foreign advanced technology-static mixer to lighten water layer, increase carbonizing time, ensure mixing efficiency. Adopt carbon dioxide back
flow deoxygenation, which can save carbon dioxide and deoxidize. High quality water pump and SEIMENS electrical equipment and other parts make up a complete automatic control system.

Auto CIP System

CIP system is one of the prerequisites of food pharmacy production sanitary standards. It can remove the active mixed pollution and insoluble particles of impurity, reduce or remove the micro chemicals and heat source that pollute the productions. The specialists in out company import and digest internationall advanced technique, and successfully make automatically CIP system with high automation, simple operation, and reasonable price.

Bottle Blowing Machine

The pet stretch blow molding machine is the most stable two-step automatic stretch blow moulding machine. It has various cavities and the maximum capacity of the products is 20L. It can blow bottles in shapes: Carbonated, mineral, pesticide, cosmetics,wide-mouth, hot filling, and other packing containers etc. Which is made of plastic of crystalline type, such as PET and PP etc.

Spray Cooling/Warming Tunnel

This machine can reduce the temperature of hot filling drinks to 36 -40 ℃,or increase the temperature of cold filling carbonic acid drinks to 36-40℃. It is used in carbonated drinks,,hot tea drinks,juice drinks and production line. This machine can eliminate the condensed water on the external side of bottles ,keep bottle clean and dry. This makes bottles easier for labeling and package.

Bottle Dryer

Using high pressure air ventilation, so that high-speed air flow ejected from a slit, the remaining drops of water bottles as much as possible the body blow it away. Inclination of the slit so that the entire side of the bottle can be high-speed air-blown. The bottle dryer consists of the high pressure air fan, pressure tank, inflatable tube, rack, control devices, and other components.

Laser Printer

Laser marking machines handle nearly every industrial marking and DPM (Direct Part Marking) task. Metals, plastics, ceramics,glass etc. are processed efficiently and contact-free. All desired contents are applied repeatedly accurate and reliably: 2D, DMC and alphanumeric codes, simple serial numbers, complex logos, graphics, structures. Depending on the material and application task, the process is laser marking, engraving or deep engraving.

Sleeve Labeling Machine

This machine adopts international advanced technology; cover the circle label on the pet bottle. And then hot shrinking to fix on
the position which bottle body designated. This machine's structure is compact, and suitable for the production line of different
direction and different height.

Shrink Film Packing Machine

The machine is suitable for wrapping of such products as pop top, mineral water , bottles. beer, drinks etc. It consists of seven actuating motor, through cooperation with 7 actuating motor to form the product packed with plastic film and several bottles as a group out from the hot shrinking packing machine.

Certifications

Heng Yu Machine Certifications

International certification, National Certificate of equipment verification in Heng Yu machine
Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV
National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration, etc.
