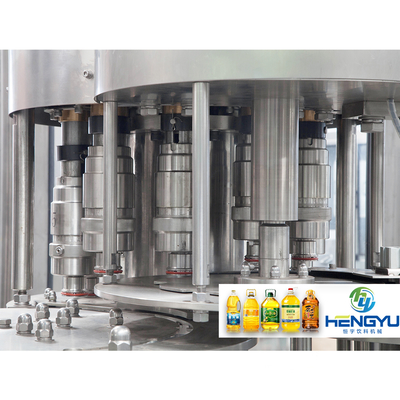

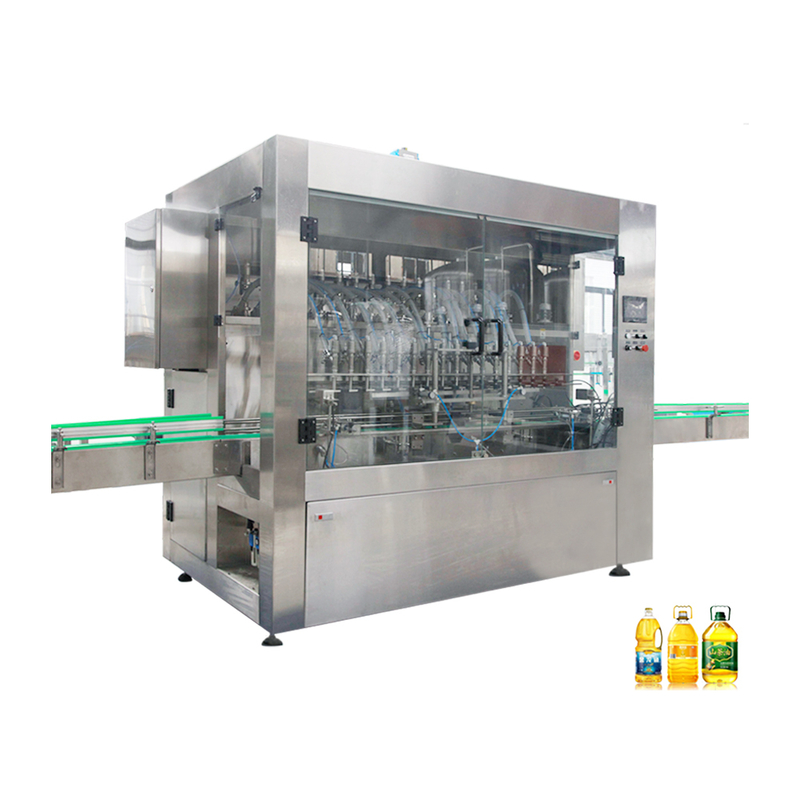

Name: Automatic Piston Honey and Olive Oil Blowing Monoblock Washing Filling Capping 3 in 1 Machine
Brand: Zhangjiagang Hengyu Beverage Machinery Co., Ltd.
Availability: InStock

Home Products Oil and fats filling machine

Automatic Piston Honey and Olive Oil Blowing Monoblock Washing Filling Capping 3 in 1 Machine

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	HENGYU MACHINE
Certification:	CE ISO SGS

Contact Now

Detailed Product Description

Application:	Food	Packaging Type:	Bottles
Packaging Material:	Plastic	Automatic Grade:	Automatic
Driven Type:	Electric	Dimension(lwh):	240015002300
Warranty:	1 Year	After-sales Service Provided:	Engineers Available To Service Machinery Overseas, Field Installation, Commissioning And Training
Keywords:	Oil Filling Machine	Function:	Oil Bottle Filling
Filling Material:	Oil And Fats Products	Bottle Type:	Plastic / Meatl / Glass
Bottle:	Round / Square	Filling Volume:	0.2-6L / 10-30L / 200L
Capacity:	100-4000BPH	Material:	SUS304/316
Weight:	2T	Voltage:	380V/3 Phase
Type:	Filling Machine	Condition:	New

Product Description

Technical parameter

Project Name	Automatic Piston / Flowmeter Filling Machine			Oil and Fat Products
Bottle Material	Bottle Shape	Filling Range	Filling Heads	Production Capacity
PET / PP / PE / Glass / Metal	Round / Square / Unique Shape	200-6000ml	4-16	100-4000BPH

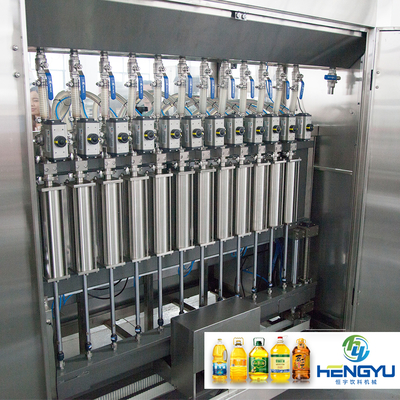

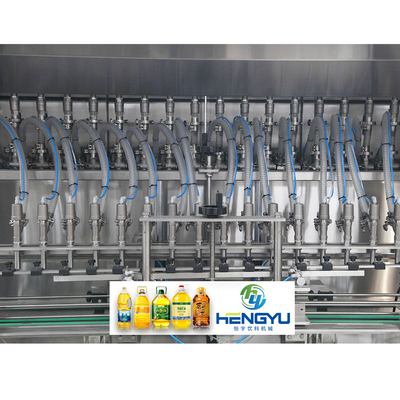

Filling Valve	Each filling valve is controled by servo motor ,realizing segmented high-and low-speed control ; vacuum resorption devices without leakage.
Bottle components	rapid replacement without tools, such as star wheels for bottle infeed and outfeed, and bottleneck clamps
Filling precision	limit deviation: ±2-3g standard deviation: 1.5
User Ambient Conditions	Temperature:10~40℃;Humidity:No dew
User Electrical Supply Specification	Voltage:380V±5%, 3phase; Frequency:50HZ±1%
