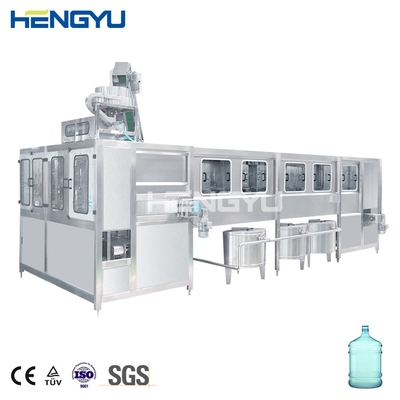

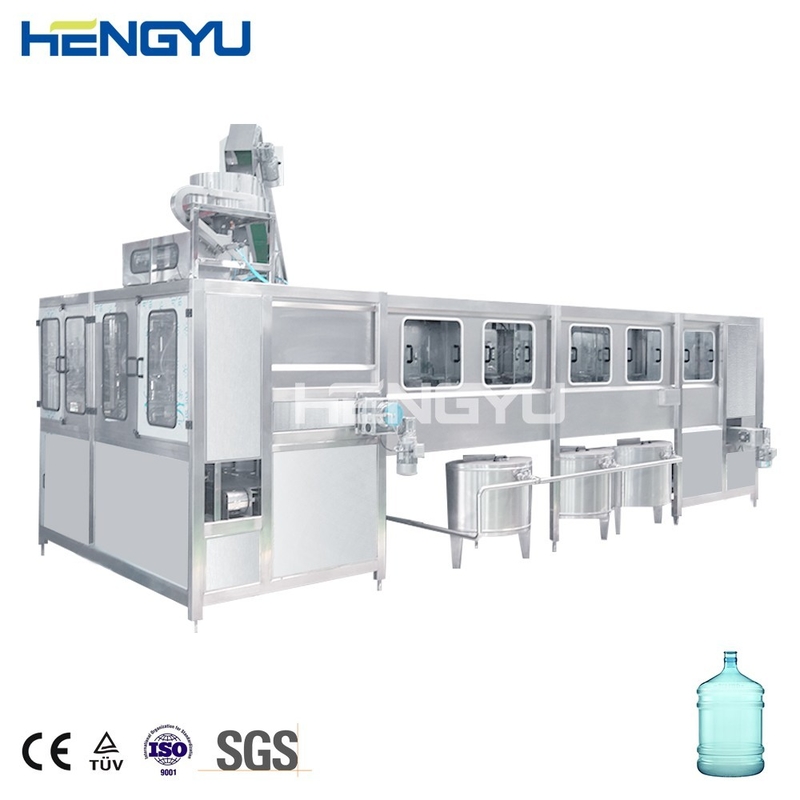

Name: 5 Gallon Water Production Line / Big Bottle Complete Water Filling Plant / 20 Liter Water Bottle Cap Manufacturing Machine
Brand: Zhangjiagang Hengyu Beverage Machinery Co., Ltd.
Availability: InStock

Home Products Oil and fats filling machine

5 Gallon Water Production Line / Big Bottle Complete Water Filling Plant / 20 Liter Water Bottle Cap Manufacturing Machine

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	According to customer

Contact Now

Detailed Product Description

Application:	Food, Beverage, Commodity, Machinery & Hardware	Packaging Type:	Barrel
Packaging Material:	Plastic	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	380V, 380V/50HZ
Dimension(lwh):	2200X2100X2200	Warranty:	1 Year
Filling Material:	Water	Filling Accuracy:	2
Video Outgoing-inspection:	Provided	Weight (KG):	680
Name:	5 Gallon Bottle Washing Fillling Capping Machine	Function:	Bottle Washing Fillling Capping
Usage:	Beverage Packaging	Bottle Type:	5 Gallon Barrel
Capacity:	100-1200 B/h	Material:	SUS304/316
Warranty:	12 Months	Bottle Size:	270*490mm
Weight:	680-4500 Kg

Product Description

Technical parameters

Model	QGF-150	QGF-300	QGF-450	QGF-600	QGF-900	QGF-1200
Filling heads	1	2	3	4	6	8
Volume(L)	18.9	18.9	18.9	18.9	18.9	18.9
Barrel Size (mm)	φ270×490	φ270×490	φ270×490	φ270×490	φ270×490	φ270×490
Capacity (BPH)	100	300	450	600	900	1200
Gas Pressure (Mpa)	0.4-0.6	0.4-0.6	0.4-0.6	0.6	0.6	0.6
Gas Consumption (m³/min)	0.37	0.6	0.8	1	1.5	1.8
Power(kw)	1.38	3.8	3.8	7.5	9.75	13.5
Voltage(V)	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz
Weight(kg)	680	1500	2100	3000	3500	4500
