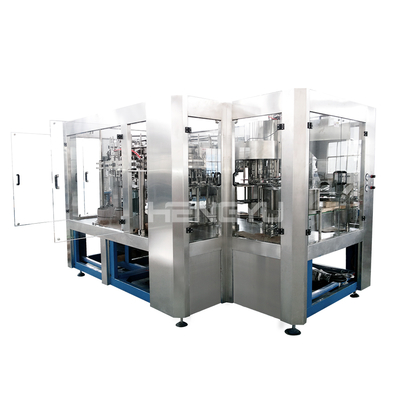

Name: Hengyu Whiskey Bottle Filling Machine with Strong Adaptability
Brand: Zhangjiagang Hengyu Beverage Machinery Co., Ltd.
Availability: InStock

Home Products Wine filling machine

Hengyu Whiskey Bottle Filling Machine with Strong Adaptability

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	HENGYU
Certification:	CE ISO

Contact Now

Detailed Product Description

Machinery Capacity:	8000BPH	Application:	Beverage
Packaging Type:	CANS, Bottles	Packaging Material:	Plastic, Glass
Automatic Grade:	Automatic	Driven Type:	Electric
Voltage:	380V 50Hz	Dimension(lwh):	260019202550mm
Warranty:	1 Year	Key Selling Points:	Low Ppm
Filling Material:	Beer	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Core Components:	Motor, PLC, Engine
After-sales Service Provided:	Engineers Available To Service Machinery Overseas, Field Installation, Commissioning And Training	Capacity:	2000-24000bph
Name:	Beer Filling Line	Filling Accuracy:	0.5%
Filling Material:	Beer Or Carbonated Drinks	Bottle Size:	250/330/500/750ml
Air Pressure:	0.7~0.8Mpa	Warranty:	One Year
Delivery Time:	45 Working Days	After Warranty Service:	Online Support
Local Service Location:	United Kingdom, Brazil, Indonesia, Thailand, Japan, Malaysia, Romania	Marketing Type:	Ordinary Product
Type:	Filling Machine	Applicable Industries:	Hotels, Food & Beverage Factory, Food & Beverage Shops
Showroom Location:	Canada, France, Viet Nam, Brazil, Indonesia, Kenya, Malaysia	Condition:	New
Warranty Of Core Components:	1 Year	Weight:	3500 KG

Product Description

1)This beer filling machine is used for filling, washing and sealing of beer drinks in glass bottles with metal crown caps or easy-open caps.
2)It used sensor as speed regulator so that clients can easily adjust machine to meet different power demand.
3)It adopts equivalent pressure filling principle and spring valve to control the quality of beverage.
4)All portions, such as feeding valve, which contact with material directly are made of 304 stainless steel or 316L material to meet the demand of food hygiene.
5)This machine employs international advanced technology with scientific design, nice appearance, complete functions, easy maintenance and high automation. It is a top priority for small and medium sized beer manufacturers and companies.

Technical Parameter

Model	Capacity(BPH)	Power(KW)	Dimension(mm)	Weight(kg)
BCGF14-12-5	2000	2.2	240016002500	2500
BCGF18-18-6	3500	3.5	260019202550	3500
BCGF24-24-6	5000	4.5	310023002800	4500
BCGF32-32-8	8000	6	380028002900	5600
BCGF40-40-10	12000	7.5	460028002900	8500
BCGF50-50-12	16000	9.5	545033002900	9800
BCGF60-60-15	20000	11.2	650045002900	12800
BCGF70-70-18	24000	15	680048002900	15000

Auxiliary Equipment

Water Treatment System

1 Raw water tank + Raw water pump
2 Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter
3 Reverse Osmosis (one level)
4 UV sterilizer
5 Finished water tank + Pure water pump

1/Stainless steel high pressure film shell
2/All kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system
3/Online type pressure auto self-protection device
4/Online type electricity indicator (with stable compensation)
5/System safe protecting and alarm system
6/System frame

Shower Cooling Machine

1)Mainly for cooling and sterilization
2)The main parts of the machine are made of stainless steel, the top is designed to be openable for easy maintenance and observation
3)Nozzles are manufactured using U.S. technology and spray water evenly
4)Conveyor belt adopts Rexnor technology, flat surface with small wear
5)Smooth and reliable operation with low energy consumption

Carbonated Drink Mixer

1. suitable beverage types: Cola and lemon.
2. mixing ratio range: 3:1 - 6:1
3. CO2 content: 4 times
4. volume: CO2 consumption of about 4 M3/h
5. CO2 supply pressure: 0.8-1 Mpa
6. CO2 Purity: 99.9%
7. consumption of ethylene glycol solution: water=30M3/h
8. ethylene glycol solution pressure: 1.0Mpa
9. ethylene glycol solution inlet temperature: -2 C.

Automatic labeling machine

1)Heat shrink sleeve labeling machine
2)OPP Hot melt labeling machine<in picture>
3)PVC label stick labeling machine
It adopts double driving structure which is a new and advanced driving device for the thermal shrink sleeve machine, that is, four-wheel driving, self-centering and balanced pressure of four wheels. It can achieve the good effect of transmission of labels smoothly, stably and rapidly.

Bottle Packaging Machine

1)PE film shrink wrapping machine<in picture>
2)Half-tray shrink wrapping machine
3)Carton box packaging machine
It adopts the photoelectric sensor to detect online, gather signals which are controlled by PLC, and adopts piston as executable element, to realize product conveying, combination, film wrapping, cutting, heat& shrink, cool and finally get the finished product.
