Automatic Champagne / Sparkling Wine / Whiskey / Red Wine Glass Bottle Filling Line Machine

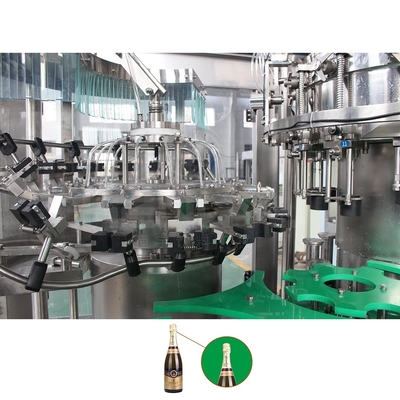

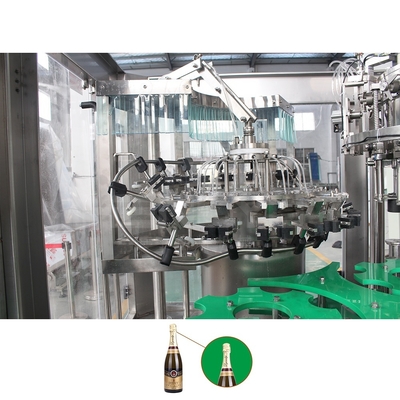

Washing heads

1)Into bottle way is air conveyor direct connection with Bottle dial .
2)All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean .
3)304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
4)304/316 stainless steel washing pump make the machine more durable .

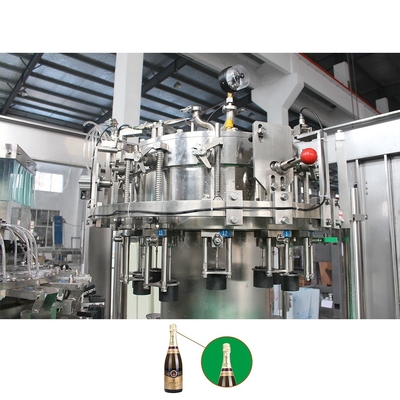

Filling heads

1)304/316 Stainless steel high precision filling nozzle
2) Filling volume adjustable in fine rank, same liquid level after filling
3)All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
4) 304/316 stainless steel filling pump
5)Efficient spray nozzle rinse thoroughly and save water for flushing

Carbonated Drink Mixer

1. suitable beverage types: Cola and lemon.
2. mixing ratio range: 3:1 - 6:1
3. CO2 content: 4 times
4. volume: CO2 consumption of about 4 M3/h
5. CO2 supply pressure: 0.8-1 Mpa
6. CO2 Purity: 99.9%
7. consumption of ethylene glycol solution: water=30M3/h
8. ethylene glycol solution pressure: 1.0Mpa
9. ethylene glycol solution inlet temperature: -2 C.

Automatic labeling machine

1)Heat shrink sleeve labeling machine
2)OPP Hot melt labeling machine<in picture>
3)PVC label stick labeling machine
It adopts double driving structure which is a new and advanced driving device for the thermal shrink sleeve machine, that is, four-wheel driving, self-centering and balanced pressure of four wheels. It can achieve the good effect of transmission of labels smoothly, stably and rapidly.

Bottle Packaging Machine

1)PE film shrink wrapping machine<in picture>
2)Half-tray shrink wrapping machine
3)Carton box packaging machine
It adopts the photoelectric sensor to detect online, gather signals which are controlled by PLC, and adopts piston as executable element, to realize product conveying, combination, film wrapping, cutting, heat& shrink, cool and finally get the finished product.

Bottle Blowiing Part

1)Widely used to produce the carbonated bottle,mineral water bottle,pesticide bottle,oil bottle and cosmetics etc.
2)Suitable for producing PET plastic containers and bottles in all shapes.
3)With famous electrical components and have various capacities.
