Alcohol Making Machine/whisky Production Machine/beer Production Line

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	HENGYU
Certification:	ISO9001:2000

Contact Now

Detailed Product Description

Application:	Food, Beverage, Chemical, Machinery & Hardware	Packaging Type:	CANS, Bottles, Case
Packaging Material:	Plastic, Glass	Automatic Grade:	Automatic
Driven Type:	Electric	Dimension(lwh):	240016002500mm
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Name:	Beer Filling Line
Model:	BCGF	Capacity:	2000-24000bph
Filling Material:	Beer Or Carbonated Drinks	Bottle Type:	Glass Bottle
Bottle Size:	250/330/500/750ml	Filling Accuracy:	0.5%
Air Pressure:	0.7~0.8Mpa	Delivery Time:	45 Working Days
Warranty:	One Year	Weight:	2500KG
Voltage:	380V 50Hz	Power:	2.2Kw
Type:	Filling Machine	Condition:	New

Product Description

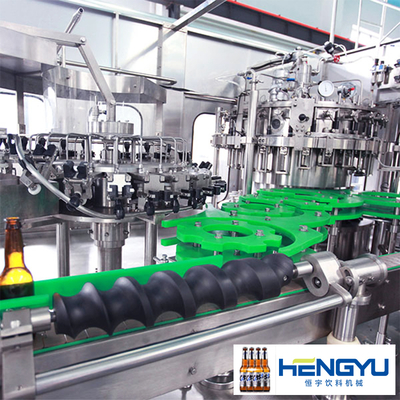

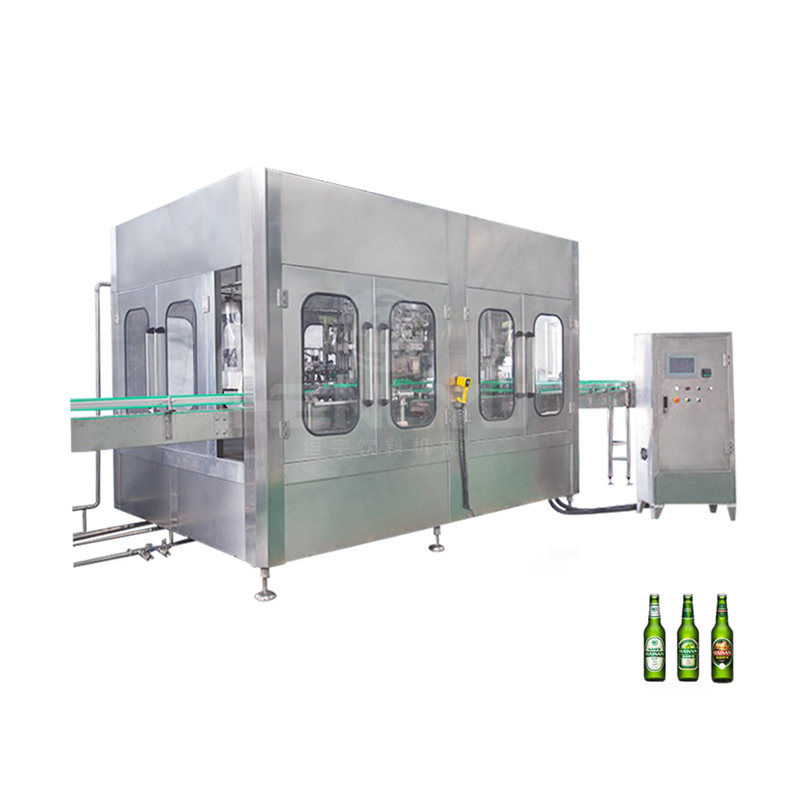

BCGF series 3-in-1 glass bottle beer washing filling and capping production line factory price high quality machine

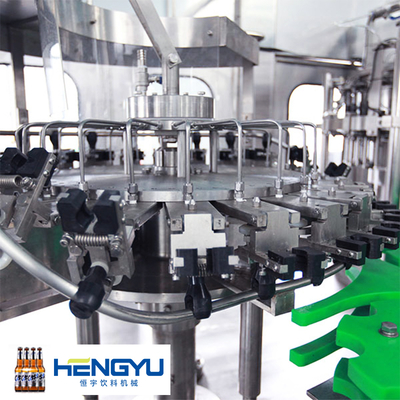

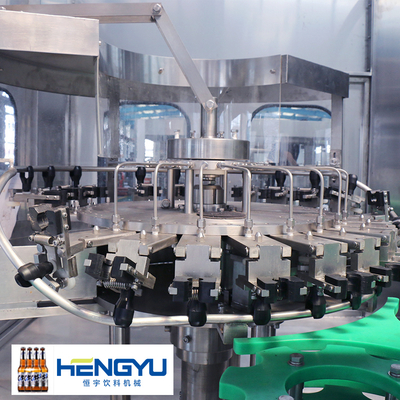

1)This beer filling machine is used for filling, washing and sealing of beer drinks in glass bottles with metal crown caps or easy-open caps.
2)It used sensor as speed regulator so that clients can easily adjust machine to meet different power demand.
3)It adopts equivalent pressure filling principle and spring valve to control the quality of beverage.
4)All portions, such as feeding valve, which contact with material directly are made of 304 stainless steel or 316L material to meet the demand of food hygiene.
5)This machine employs international advanced technology with scientific design, nice appearance, complete functions, easy maintenance and high automation. It is a top priority for small and medium sized beer manufacturers and companies.

Technical Parameter

Model	Capacity(BPH)	Power(KW)	Dimension(mm)	Weight(kg)
BCGF14-12-5	2000	2.2	240016002500	2500
BCGF18-18-6	3500	3.5	260019202550	3500
BCGF24-24-6	5000	4.5	310023002800	4500
BCGF32-32-8	8000	6	380028002900	5600
BCGF40-40-10	12000	7.5	460028002900	8500
BCGF50-50-12	16000	9.5	545033002900	9800
BCGF60-60-15	20000	11.2	650045002900	12800
BCGF70-70-18	24000	15	680048002900	15000

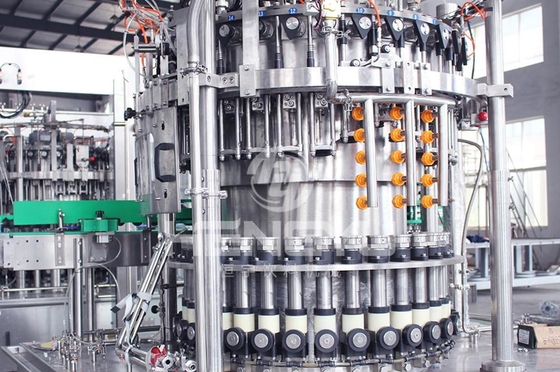

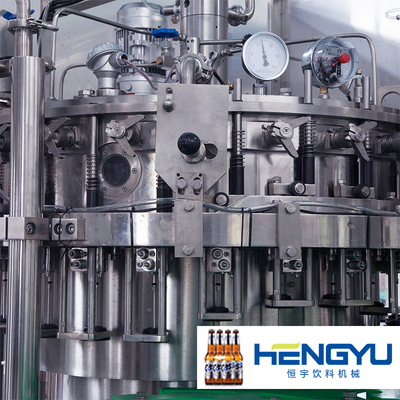

Filling heads

Adopting the way of filling by holding the necks of the bottle, plus the function of pre-cover of the centralizing cover with high precise centralization,which ensure the right seating of mouth of the bottle and filling valve,with low liquid loss.

Capping heads

<1> Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
<2> All 304/316 stainless steel construction
<3> No bottle no capping
<4> Automatic stop when lack of bottle
<5>Capping effect is stable and reliable ,Defective rate ≤0.2% .

Double Vacuum System

The oxygen content in beer is the key element of the beer taste.So the double vacuum system is the key process of beer filling,effectively isolating the contact between filling process and air.

Flat Conveyor

<1>Energy saving. High efficient. Adapt to customer factory layout
<2> Special lubrication system, keep products clean, health, safety
<3>Extended service life
<4>Electric eyes design keep whole line running safety and quickly
<5>Overload protection mechanism to effectively ensure the safety of the machine

Auxiliary Equipment

Water Treatment System

1)Stainless steel high pressure film shell
2)All kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system
3)Online type pressure auto self-protection device
4)Online type electricity indicator (with stable compensation)
5)System safe protecting and alarm system
6)System frame

Shower Cooling Machine

1)Mainly for cooling and sterilization
2)The main parts of the machine are made of stainless steel, the top is designed to be openable for easy maintenance and observation
3)Nozzles are manufactured using U.S. technology and spray water evenly
4)Conveyor belt adopts Rexnor technology, flat surface with small wear
5)Smooth and reliable operation with low energy consumption

Carbonated Drink Mixer

1. suitable beverage types: Cola and lemon.
2. mixing ratio range: 3:1 - 6:1
3. CO2 content: 4 times
4. volume: CO2 consumption of about 4 M3/h
5. CO2 supply pressure: 0.8-1 Mpa
6. CO2 Purity: 99.9%
7. consumption of ethylene glycol solution: water=30M3/h
8. ethylene glycol solution pressure: 1.0Mpa
9. ethylene glycol solution inlet temperature: -2 C.

Automatic labeling machine

1)Heat shrink sleeve labeling machine
2)OPP Hot melt labeling machine<in picture>
3)PVC label stick labeling machine
It adopts double driving structure which is a new and advanced driving device for the thermal shrink sleeve machine, that is, four-wheel driving, self-centering and balanced pressure of four wheels. It can achieve the good effect of transmission of labels smoothly, stably and rapidly.

Bottle Packaging Machine

1)PE film shrink wrapping machine<in picture>
2)Half-tray shrink wrapping machine
3)Carton box packaging machine
It adopts the photoelectric sensor to detect online, gather signals which are controlled by PLC, and adopts piston as executable element, to realize product conveying, combination, film wrapping, cutting, heat& shrink, cool and finally get the finished product.

Our Company

contact

Certifications

Our Service

Packing & Delivery

FAQ

Q1: How to choose the most suitable machine and get the final suitable price?
A1: For beverage bottle Filling Machine, you need to reply us the following questions:
1. What kind of product (carbonated or no carbonated beverage, juice or water) for filling?
2. What's the volume of the bottle(Can)?
3. Could you show us picture of your Bottle/can?
4. Could you send some bottle samples to us?
5. What capacity do you need for production?

Q2: Do you have videos or manual for us to know the machine better?
A2: Yes, of course. Please email us and ask for it. We will send you soon.

Q3: How about your machine's quality?
A3: Every machine is applied with CE certificate, SGS certificate, highly meets requirement of TUV, made of SUS 304 for food packaging; SUS316 for pharmaceutical products packaging. Inspect certificate is available.

Q4: What's the delivery time?
A4: Depending on your order: for whole production line it is 40~60 workdays. bottle or tube filling machine, labeling machine, capping machine, unscrambling machine, cansealing machine will be 30~40 days. Other simple equipment will be around 20 days. The above delivery time is calculated after receiving the down payment as well as sample bottles / tubes and materials.

Q5: Is there MOQ for your machine?
A5: 1 set is acceptable. Of course, if you order more, it will be fine and its price will be more competitive.

Q6: How to install the machine?
A6: Please do not worry. We will send you detailed video and instruction manual for your reference. Customer also can appoint your engineers to our factory to learn. Our engineers also can go abroad to install the machine well, however, customer needs to pay round air tickets, hotel and service expenses.

Q7: What is your warranty for the machine?
A7: The valid time for the warranty of our machine is one year; we will provide the spare parts to the buyer total for free in one year, which do not include those damaged or broken parts caused by human. And the vulnerable and consumptive spare parts are also out of the range of guarantee.Buyer needs to pay for the shipping or air charges.
