Semiautomatic Bottle Hot Sauce Glass Bottle Filling Machine

Semiautomatic Bottle Hot Sauce Glass Bottle Filling Machine

  • Semiautomatic Bottle Hot Sauce Glass Bottle Filling Machine
  • Semiautomatic Bottle Hot Sauce Glass Bottle Filling Machine
  • Semiautomatic Bottle Hot Sauce Glass Bottle Filling Machine
  • Semiautomatic Bottle Hot Sauce Glass Bottle Filling Machine
  • Semiautomatic Bottle Hot Sauce Glass Bottle Filling Machine
  • Semiautomatic Bottle Hot Sauce Glass Bottle Filling Machine
  • Semiautomatic Bottle Hot Sauce Glass Bottle Filling Machine
Semiautomatic Bottle Hot Sauce Glass Bottle Filling Machine
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Hengyu
Contact Now
Detailed Product Description
Automatic Grade: Semi-auto Driven Type: Piston Filling Machine, Electric
Voltage: 110V/220/,50HZ/60HZ Dimension(l*w*h): 1230*380*420mm
Weight (kg): 46 Warranty: 1 Year
Key Selling Points: Easy To Operate Machinery Test Report: Provided
Video Outgoing-inspection: Provided Core Components: Other
Filling Material: Water, Oil, Milk, Beer, Juice Packing Type: Bottles
Weight: 28kg - 46KG Air Pressure: 0.4-0.6 Mpa
Material: Stainless Steel Filing Speed: 5-50 Bottles/min
Automatic Grade: Semi-automatic Machinery Capacity: 10ml-5000ml
After-sales Service Provided: Online Support Capacity: Depending On Customer
Filling Nozzles: Single Nozzle

Semiautomatic Bottle Hot Sauce Glass Bottle Filling Machine 0
\uD83D\uDC46Click Above Jump to GET SOLUTION!\uD83D\uDC46
Semiautomatic Bottle Hot Sauce Glass Bottle Filling Machine 2

If you are finding a Trustworthy Filling Machine Manufacturer & Long-Term Oversea Partner, Hengyu is your First Choice!

2,000+ Success Pros


2,000+ top filling production lines during past 18 years.

Original Manufacture


100% guaranteed satisfaction and No Overpay Again!

Money & Cost Saving


1- 1 Vip Custom Solution to support your business.
All-in-one Top Filling Solution
Semiautomatic Bottle Hot Sauce Glass Bottle Filling Machine 4
\uD83D\uDC4DPET Bottle Water Solution
Rotary Type 3-in-1 Washing Filling Capping
Semiautomatic Bottle Hot Sauce Glass Bottle Filling Machine 6
\uD83D\uDC4DGlass Bottle Solution
Rotary Type 3-in-1 Washing Filling Capping
Semiautomatic Bottle Hot Sauce Glass Bottle Filling Machine 8
Pop Can Solution
Rotary Type 2-in-1 Filling Capping
Semiautomatic Bottle Hot Sauce Glass Bottle Filling Machine 10
\uD83D\uDC4D3-5 Gallon Solution
Linear Type 3-in-1 Washing Filling Capping
Semiautomatic Bottle Hot Sauce Glass Bottle Filling Machine 12
3-10 Liter Solution
Linear Type 3-in-1 Washing Filling Capping
Semiautomatic Bottle Hot Sauce Glass Bottle Filling Machine 14
Daily Products Solution
Linear Type Piston Filling
Product Description
Semiautomatic Bottle Hot Sauce Glass Bottle Filling Machine 16
Specification
Product Description
1.The machine is the semi-auto piston type filling machine, working undewr the state without electricity, it is easy to operate.
2.Equiped with one filling heads in-phase, improving the work efficiency.
3.This machine is reasonable in design, smart in model, the pneumatic part adopts the pneumatic components of Taiwan.
4.The part conacting materials is made of stainless steel 304 and PTFE.
5.With adjustment handle of filling volume, the filling speed can be adjusted at will, with high filling acuracy.
6.Filling head adopts anti-leakage, anti-pull and with lifting filling device.

Application

They are suitable to fill water, beverage, oil, ink, lotion, shampoo, sauce, jam, gel, cream, etc in the field of cosmetic,
drinks, chemical, medical, food, etc.

Our Advantages

We produce various packing machines including filling machine, labeling machine, sealing machine, capping machine, conveyor and
aluminum foil sealing material etc. Relying on professional technologies, satisfactory services, innovative concept and practical
attitude, we specialize in producing and marketing of all kinds of packing machines, as well as management & cooperation.
Model
Air pressure
Weight
Hopper
Dimension
10-100ml




      0.4-0.6Mpa
28kg




      45*45*45cm
95*32*34cm
30-300ml
Manufacturing Plant, Food & Beverage Factory
28kg
95*32*34cm
50-500ml
Video technical support, Online support, Spare parts, Field maintenance and repair service
28kg
95*32*34cm
100-1000ml
Turkey, Philippines, Brazil, Peru, Saudi Arabia, Thailand, japan, Morocco
24kg
127*32*35cm
300-2500ml
1 YEAR
28kg
119*38*42cm
1000-5000ml
other
35kg
123*38*42cm
Detailed Images
Semiautomatic Bottle Hot Sauce Glass Bottle Filling Machine 18

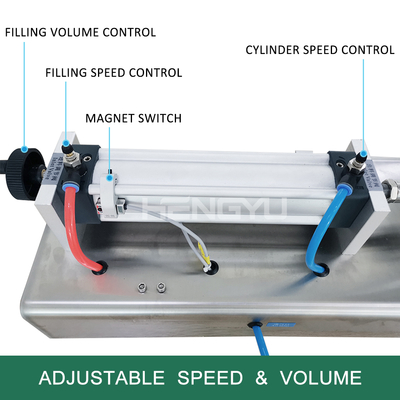

Filling principle:
The machine is a semi-automatic piston filling machine, which is driven by a cylinder to extract and eject material. The material flow is controlled by a three-way rotary valve. The stroke of the cylinder can be controlled by the reed switch. The filling volume can be adjusted, You can adjust the intake air cylinder to achieve rapid or slow filling

Product characteristics:
Easy to clean
Filling accurately
High Quality
Easy to maintenance
Customizable

Semiautomatic Bottle Hot Sauce Glass Bottle Filling Machine 20
Engine start and stop
Intelligent operation, easy to start, stable and durable
Semiautomatic Bottle Hot Sauce Glass Bottle Filling Machine 22
High quality cylinder
Genuine accessories, good sealing, stable air pressure, long service life High quality.
Semiautomatic Bottle Hot Sauce Glass Bottle Filling Machine 24

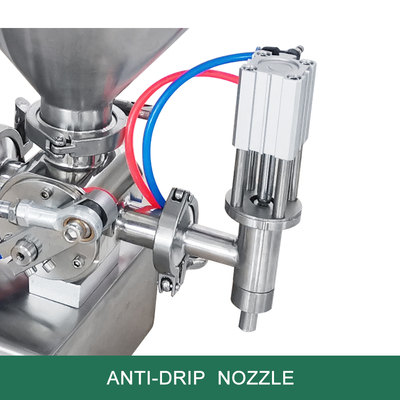

Stainless steel nozzle
The machine is made of stainless steel and made of fine steel. Easy to clean It is stable and durable and filling accurately.
Semiautomatic Bottle Hot Sauce Glass Bottle Filling Machine 26
Tee rotary valve

Samples:
Semiautomatic Bottle Hot Sauce Glass Bottle Filling Machine 28
Semiautomatic Bottle Hot Sauce Glass Bottle Filling Machine 30
Semiautomatic Bottle Hot Sauce Glass Bottle Filling Machine 32
Semiautomatic Bottle Hot Sauce Glass Bottle Filling Machine 34
Semiautomatic Bottle Hot Sauce Glass Bottle Filling Machine 36
Semiautomatic Bottle Hot Sauce Glass Bottle Filling Machine 38
Packing & Delivery
Semiautomatic Bottle Hot Sauce Glass Bottle Filling Machine 40
Package Type : As usual, we adopt wooden case as package type. It's suitable for long-distance transport. According to customers'special demand, we could adopt sheet iron case and so on.

Transport : By sea. By train. By aircraft.
Company Profile
Semiautomatic Bottle Hot Sauce Glass Bottle Filling Machine 42
Semiautomatic Bottle Hot Sauce Glass Bottle Filling Machine 44
Semiautomatic Bottle Hot Sauce Glass Bottle Filling Machine 46
Semiautomatic Bottle Hot Sauce Glass Bottle Filling Machine 48
Semiautomatic Bottle Hot Sauce Glass Bottle Filling Machine 50
Semiautomatic Bottle Hot Sauce Glass Bottle Filling Machine 52
Zhangjiagang Hengyu Beverage Machinery Co.,Ltd.is a professional manufacturer of food and beverage machinery development. We are professinal manufacturer of Food and Beverage production line equipments.we offer Design and manufacture, installation and debugging, manning guide, after-sales service in one. Our company adhere to market-oriented,technology-leading,quality as the main line,services for the protection and established a perfect quality assurance system.Our company has self-and agent all kinds of goods and technology import and export business,and add the key engineering contract. The company's main products as these:All kinds of series carbonated drinks,mineral water,purified water,juice,tea,milk,wine and other food liquids bottled,bottled and other glass production line equipment and drinking water,mineral water,purified water and other types of water treatment equipment.Wherein,CGF series,CGF series botting lines and QGF Trinity bottled beverage production lines,QHS series drink mixer,both digestion and absorption of Germany,Italy,Japan advanced technology made of,Our product technology is mature and with high quality.Not only selling domestic 29 provinces,municipalities and autonomous regions,and exported to Russia,Kyrgyzstan,Ecuador,Malaysia,Indonesia,Philippines,Vietnam,Libya,Kenya and other countries and regions,the majority of users.Meanwhile,the company can provide customers Technological advice,plant graphic design,installation and commissioning,technical training etc. The company has consistently adhered to the "Integrity of others,Trustworthiness as a fundamental and Good product quality to win" business philosophy, willing to work with all walks of life work together to develop,establish long-time stable business ralationship. Warmly welcome new and old customers to visit us!
