Name: Good Price Semi Automatic Small Liquid Water Bottle Packing Machine
Brand: Zhangjiagang Hengyu Beverage Machinery Co., Ltd.
Availability: InStock

Home Products Others

Good Price Semi Automatic Small Liquid Water Bottle Packing Machine

Product Details:

Place of Origin:	China

Contact Now

Detailed Product Description

Application:	Beverage, Commodity, Chemical	Packaging Type:	Bottles
Packaging Material:	Plastic, Metal, Glass	Automatic Grade:	Semi-automatic
Driven Type:	Electric	Voltage:	220V, 110V, 220V/110V
Warranty:	1 Years	Key Selling Points:	Easy To Operate
Filling Material:	Milk, Water, Oil, Juice	Filling Accuracy:	±0.5%
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Core Components:	Pressure Vessel, Pump, Gear, Bearing, Engine	Weight (KG):	35
Product Name:	Viscous Liquid Filling Machine	Type:	Filling Machine
Driven Type:	Pneumatic	Weight:	28kg - 46KG
Air Pressure:	0.4-0.6 Mpa	Material:	Stainless Steel
Filing Speed:	5-50 Bottles/min

Product Description

Specification

Product Description

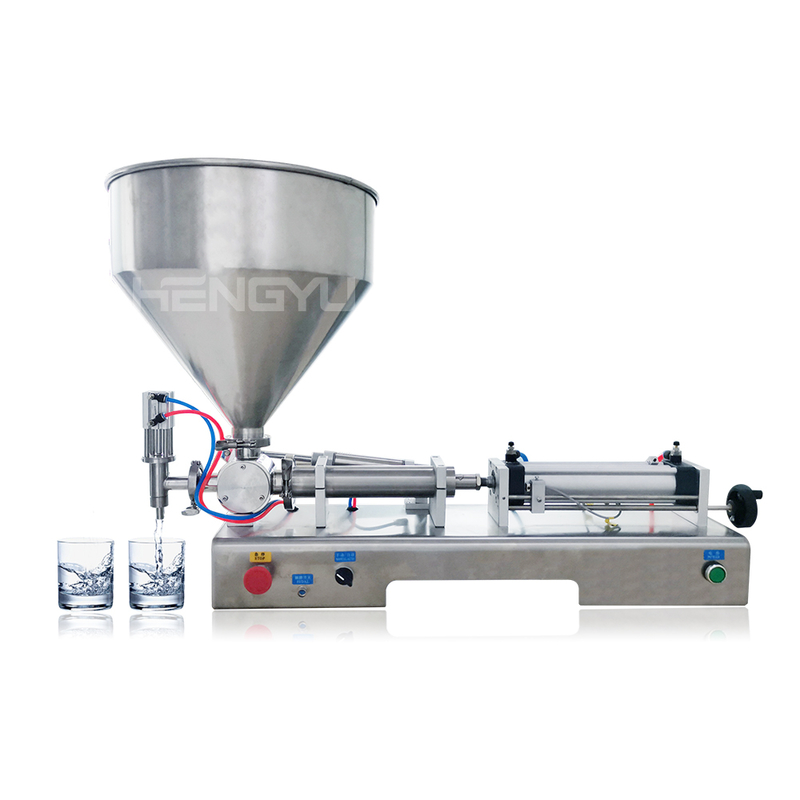

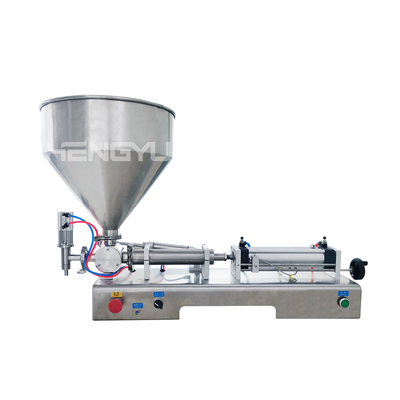

1.The machine is the semi-auto piston type filling machine, working undewr the state without electricity, it is easy to operate.
2.Equiped with one filling heads in-phase, improving the work efficiency.
3.This machine is reasonable in design, smart in model, the pneumatic part adopts the pneumatic components of Taiwan.
4.The part conacting materials is made of stainless steel 304 and PTFE.
5.With adjustment handle of filling volume, the filling speed can be adjusted at will, with high filling acuracy.
6.Filling head adopts anti-leakage, anti-pull and with lifting filling device.

Application

They are suitable to fill water, beverage, oil, ink, lotion, shampoo, sauce, jam, gel, cream, etc in the field of cosmetic,
drinks, chemical, medical, food, etc.

Our Advantages

We produce various packing machines including filling machine, labeling machine, sealing machine, capping machine, conveyor and
aluminum foil sealing material etc. Relying on professional technologies, satisfactory services, innovative concept and practical
attitude, we specialize in producing and marketing of all kinds of packing machines, as well as management & cooperation.

Model	Air pressure	Weight	Hopper	Dimension
10-100ml	0.4-0.6Mpa	28kg	454545cm	953234cm
30-300ml		Manufacturing Plant, Food & Beverage Factory		28kg	953234cm
50-500ml		Video technical support, Online support, Spare parts, Field maintenance and repair service		28kg	953234cm
100-1000ml		Turkey, Philippines, Brazil, Peru, Saudi Arabia, Thailand, japan, Morocco		24kg	1273235cm
300-2500ml		1 YEAR		28kg	1193842cm
1000-5000ml		other		35kg	1233842cm

Detailed Images

Filling principle：
The machine is a semi-automatic piston filling machine, which is driven by a cylinder to extract and eject material. The material flow is controlled by a three-way rotary valve. The stroke of the cylinder can be controlled by the reed switch. The filling volume can be adjusted, You can adjust the intake air cylinder to achieve rapid or slow filling

Product characteristics:

Easy to clean
Filling accurately
High Quality
Easy to maintenance
Customizable

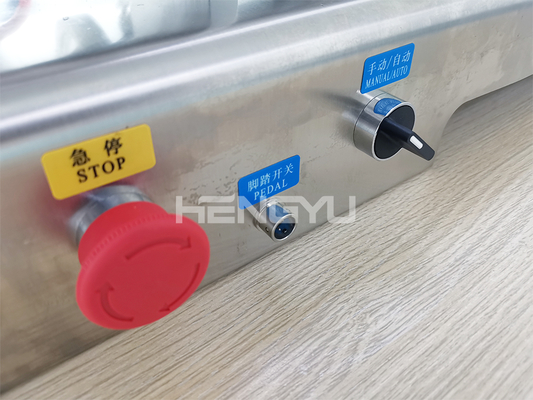

Engine start and stop

Intelligent operation, easy to start, stable and durable

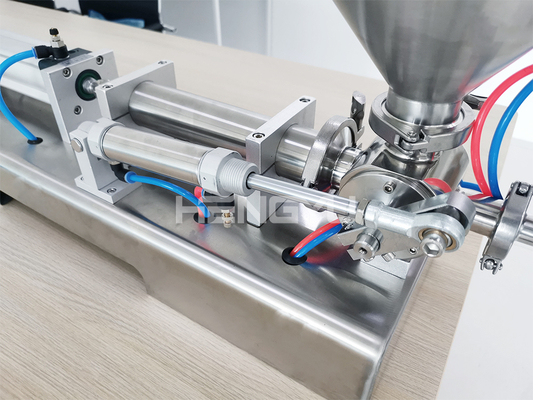

High quality cylinder

Genuine accessories, good sealing, stable air pressure, long service life High quality.

Stainless steel nozzle

The machine is made of stainless steel and made of fine steel. Easy to clean It is stable and durable and filling accurately.

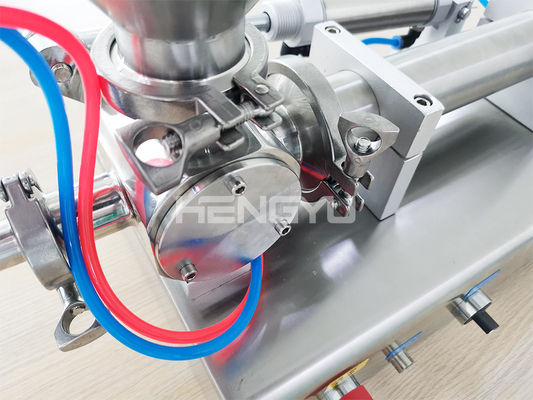

Tee rotary valve

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for
producing PET plastic containers and bottles in all shapes.

Samples:

Packing & Delivery

Package Type : As usual, we adopt wooden case as package type. It's suitable for long-distance transport. According to customers'special demand, we could adopt sheet iron case and so on.

Transport : By sea. By train. By aircraft.
